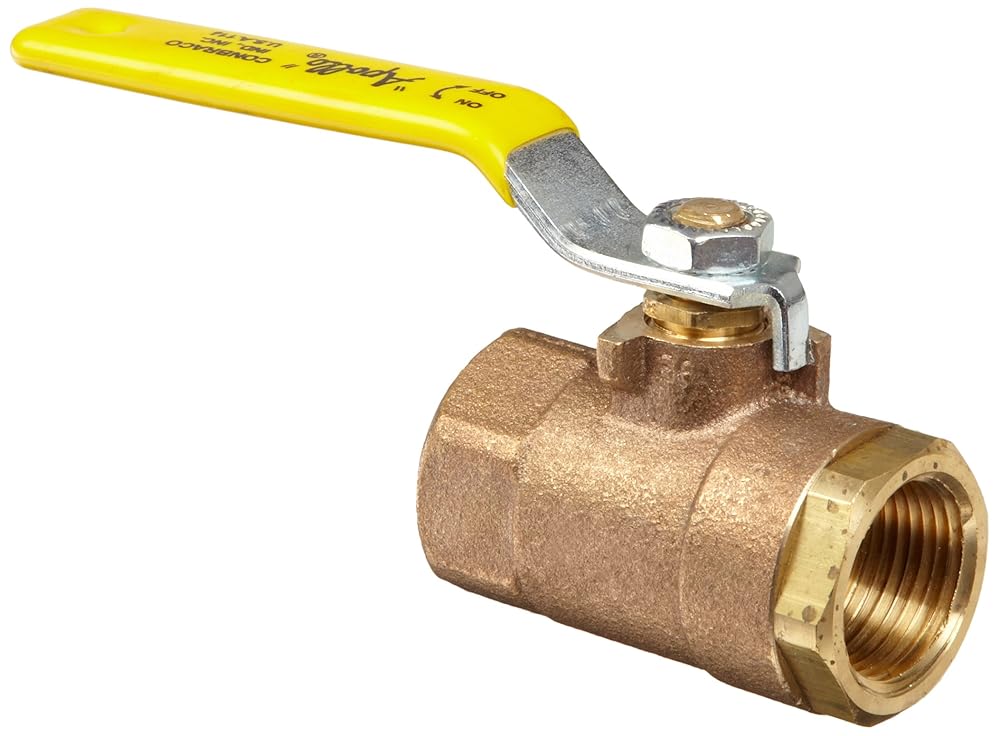

The Apollo 70 Series is a widely used line of robust, general-purpose bronze ball valves, known for their heavy-duty construction, standard port design (though variations exist), and reliable performance in water, air, and other media, featuring chrome-plated brass balls, PTFE seats, and lever handles for residential, commercial, and industrial applications, offering options like lead-free versions (70LF) and specialized trims.
Key Features & Specifications (General)
- Body: Bronze.
- Port: Standard (most common), but also full-port (70-800) and 3-way diversion (70-900) available.
- Ball: Chrome-plated brass.
- Seats/Seals: Reinforced PTFE (RPTFE) or MPTFE.
- Stem: Blow-out proof, adjustable packing gland.
- End Connections: Female NPT (threaded), but soldered/sweated (70-900) options exist.
- Pressure: Up to 600 psig (CWP - Cold Working Pressure).
- Temperature: Up to 500°F (260°C).
- Operation: Lever handle (steel, zinc-plated with vinyl grip).
Common Variations
- 70-100 Series: The standard 2-piece, standard port, bronze ball valve with NPT ends.
- 70LF Series: Lead-free versions for potable water systems.
- 70B Series: With special trim for boiler service.
- 70-900 Series: 3-way diversion valves with soldered ends for flow control.
Applications
Ideal for water, hydronic heating, general plumbing, and fluid transfer, offering a dependable shut-off in various systems.
